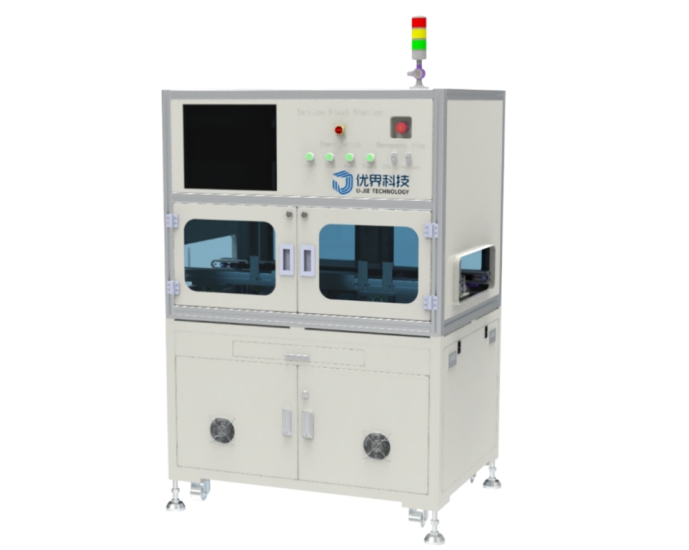

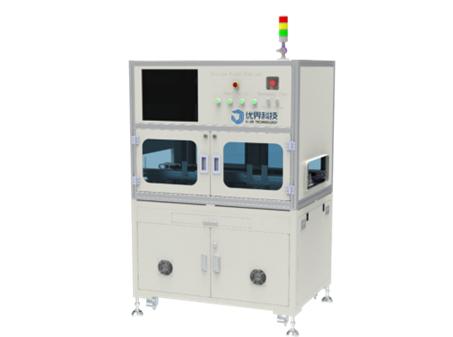

Equipment Features
①. The system enables fast programming and CAN communication testing, using an inline tester combined with conveyor pallets to transport large PCBA/TLA units;
②. Equipped with a safety control system meeting OEM-grade safety standards;
③. Integrated test cabinet and fixture design improves efficiency and reduces footprint.
Application Areas
PCBA ICT/FCT Testing, Routine Testing of Integrated ICs, Testing of Discrete Electronic Components
| Key Specifications | Items | Parameter | |
| Main Test Channels | Number of test channels | 8 | |
Multi-channel asynchronous testing | Supply | ||
Voltage [Current] output range | 0-20V | 0-3A | |
Setting accuracy | ±0.1%+5mV | ±0.1%+10mA | |
Simulated battery | 电压：0-5V[20V] ±0.05%+5mV | 电流：-10-10A ±0.1%+10mA | |
Input[Output] accuracy | |||
| Main Functional Modules | Programmable Power Supply | Multi-channel integrated power supply module - supports independent asynchronous operation | |
Electronic Load | Multi-channel integrated electronic load - supports independent asynchronous operation | ||
Simulated Battery | Multi-channel battery simulation module - supports independent asynchronous operation | ||
Multi-channel Multimeter | 6.5-digit digital multimeter + multi-channel switching module | ||
| Probe Module | Minimum pitch | 0.5mm | |
Note: Specifications are subject to change without prior notice
—————————————————————————————————————————————————————————————————————————————————————
