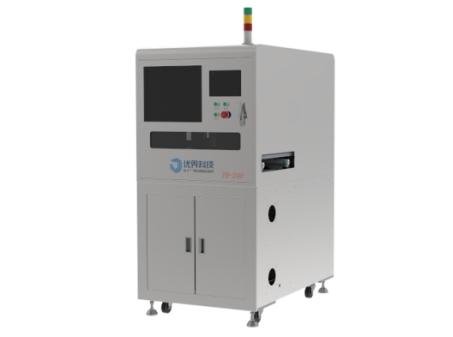

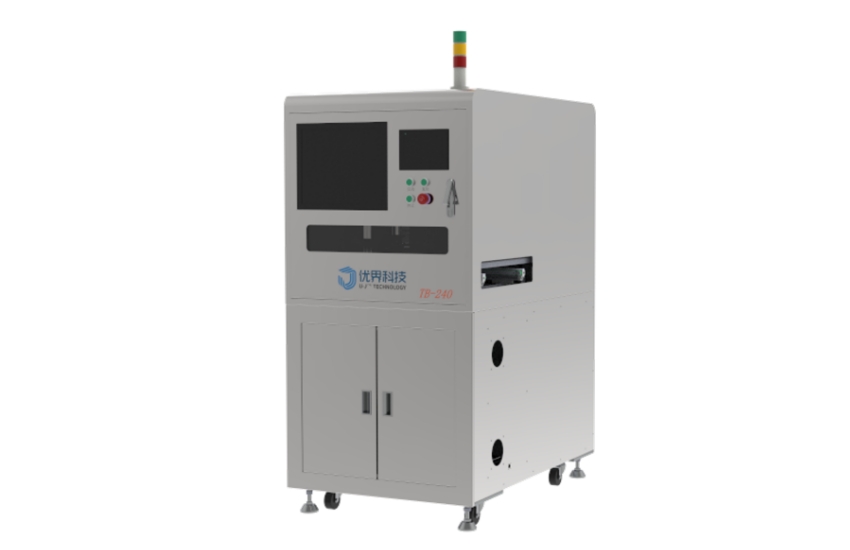

设备特点Equipment Features
Compatible PCB dimensions: Width 100mm~300mm, Length 100mm~300mm
Labeling accuracy ±0.5mm

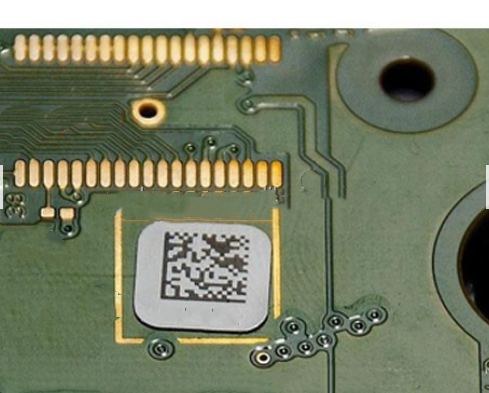

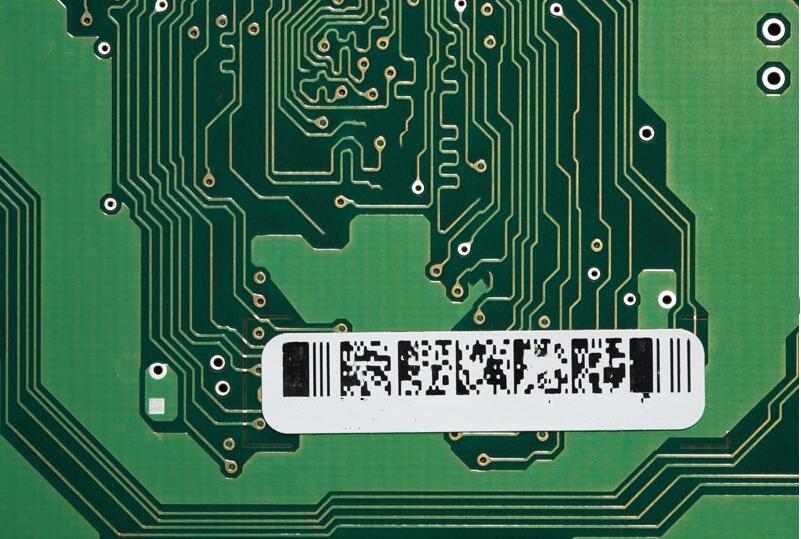

Automatically applies labels to main boards
Scans barcodes and loads boards onto SMT production line
Automatic board feeding and unloading
Application Range

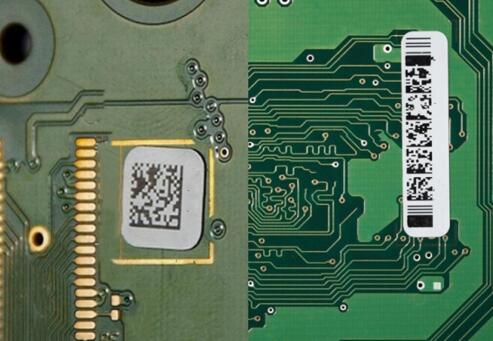

各Suitable for labeling various types of PCBs and flat panels
Specifications | |
Labeling accuracy | ±0.1mm |
Labeling speed | 50~200Pcs/min |
Label dispensing speed | 25m/min |
Conveying speed | 5~25m/min |
Applicable product dimensions | 长（40mm~400mm） 宽（40mm~300mm） 厚（0.2~5mm） |
Applicable label dimensions | 长度6mm-250mm， 宽度20mm~150mm |
Applicable label roll dimensions | 外径：Φ350mm以下均可 内径：Φ76mm |
Power supply | 220v/50HZ |
Power consumption | 950w |
Machine weight | 180kg |
Machine dimensions | 900mm*750mm*1700mm |
—————————————————————————————————————————————————————————————————————————————————————
Hello, due to the confidentiality agreements signed for the detailed technical information of some commercial cases, it cannot be displayed online! If you need to obtain a customized solution, please contact us via mobile phone & WeChat: 181-2451-5629
