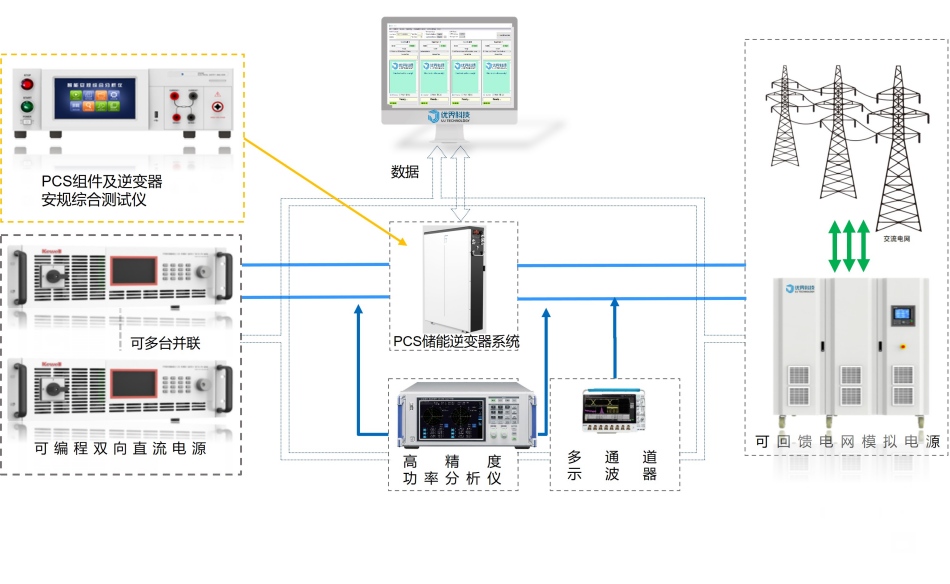

The following product testing solutions are available:
①、Programmable Bidirectional DC Power Supply: Can simulate solar cells and also act as a load to achieve integration of source and load. It absorbs power and feeds it back to the grid cleanly at the same time.
②、Grid-Feedback Simulated Power Supply (AC Source): Can simulate various operating conditions such as grid voltage, frequency fluctuation, unbalanced output, etc. It can inject harmonics and inter-harmonics, while absorbing power and feeding it back to the grid cleanly.
③、High-Precision Power Analyzer: Can perform multi-channel measurement of conventional parameters such as input and output voltage, current, power of PCS inverter, as well as harmonic distortion, harmonic content of each order, etc.
④、Comprehensive Safety Performance Analyzer (Safety Tester): Features wide range and high precision, supporting 10kV AC/DC withstand voltage/insulation test and 100A DC grounding test, which meets the comprehensive safety test requirements of PCS components and inverters.
⑤、Oscilloscope: Can perform multi-channel measurement of input and output waveforms, monitor the output quality of PCS inverter, and measure parameters such as frequency and THD……
Main Functions
| Serial | Test Item |
|---|---|
| 1 | Static MPPT Efficiency and Conversion Efficiency Test |
| 2 | Dynamic MPPT Efficiency Test |
| 3 | Grid-Connected Current Harmonic Test |
| 4 | Grid-Connected/Off-Grid Conversion Efficiency Test |
| 5 | Inverter Conversion Efficiency Test |
| 6 | Power Factor Test |
| 7 | Adaptability Test for Grid Voltage/Frequency/Voltage Harmonic/Voltage Intermittent Wave/Voltage Flicker, etc. |
| 8 | Output DC Component Test |
| 9 | PFC Charging Current Harmonic Test |
| 10 | PFC Charging Efficiency Test |
| 11 | Active Power Regulation Test, Voltage/Reactive Power Regulation Test |
| 12 | Low Voltage Ride-Through Capability Test |
| 13 | Charge-Discharge Conversion Time Test |
| 14 | Active Grid-Connected/Off-Grid Switching Test |
| 15 | Standby/No-Load Loss Test |
| 16 | PV Input Overvoltage/Undervoltage/Overcurrent Protection Test |
| 17 | Battery Input Overvoltage/Undervoltage/Overcurrent Protection Test |
| 18 | Inverter Output Overvoltage/Undervoltage/Overcurrent/Overload/Overtemperature Protection Test |
| 19 | AC Overfrequency/Underfrequency Protection Test |
| 20 | AC Side Short-Circuit Test |
| 21 | Anti-Reverse Discharge Protection Test |
—————————————————————————————————————————————————————————————————————————————————————
Hello, due to the confidentiality agreements signed for the detailed technical information of some commercial cases, it cannot be displayed online! If you need to obtain a customized solution, please contact us via mobile phone & WeChat: 181-2451-5629
