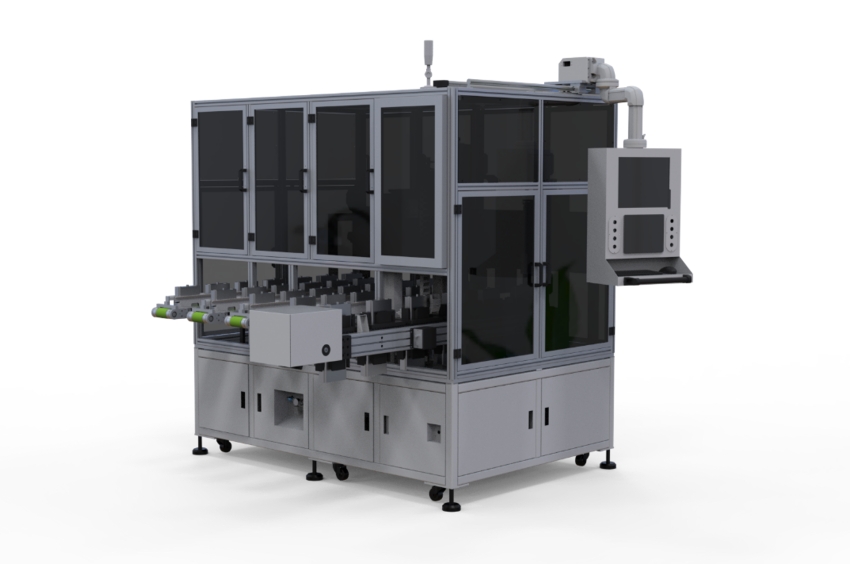

The OCV/IR testing and sorting machine is an automated system that measures cell internal resistance and voltage using the AC method, and sorts cells based on the deviation between measured values and preset thresholds. Depending on the sorting result, cells are transferred to different conveyor belts for output, enabling automatic classification of cell products. Empty trays are simultaneously returned and reused.
①、Function: Intelligent testing of open-circuit voltage (OCV), AC internal resistance (ACIR), cell voltage, and polarity
②、Number of sorting channels: 4+1 (customizable to N+1 upon request)
③、Production capacity: 10 parts per minute (PPM)
Equipment Parameters
| Parameter | |
Voltage measurement range | 0-10000mV |
Voltage measurement accuracy | ± (0.0035%rdg. + 0.0004%FS.) |
Voltage measurement resolution | 0.001mV |
Internal resistance range | 3mΩ-3KΩ |
Internal resistance accuracy | ±(0.5﹪rdg.+10dgt.) |
Internal resistance resolution | 0.0001mΩ（3mΩ挡） |
Note: Specifications are subject to change without prior notice
—————————————————————————————————————————————————————————————————————————————————————
