Inverter Automated Production Line Solution

+

Production Line Introduction

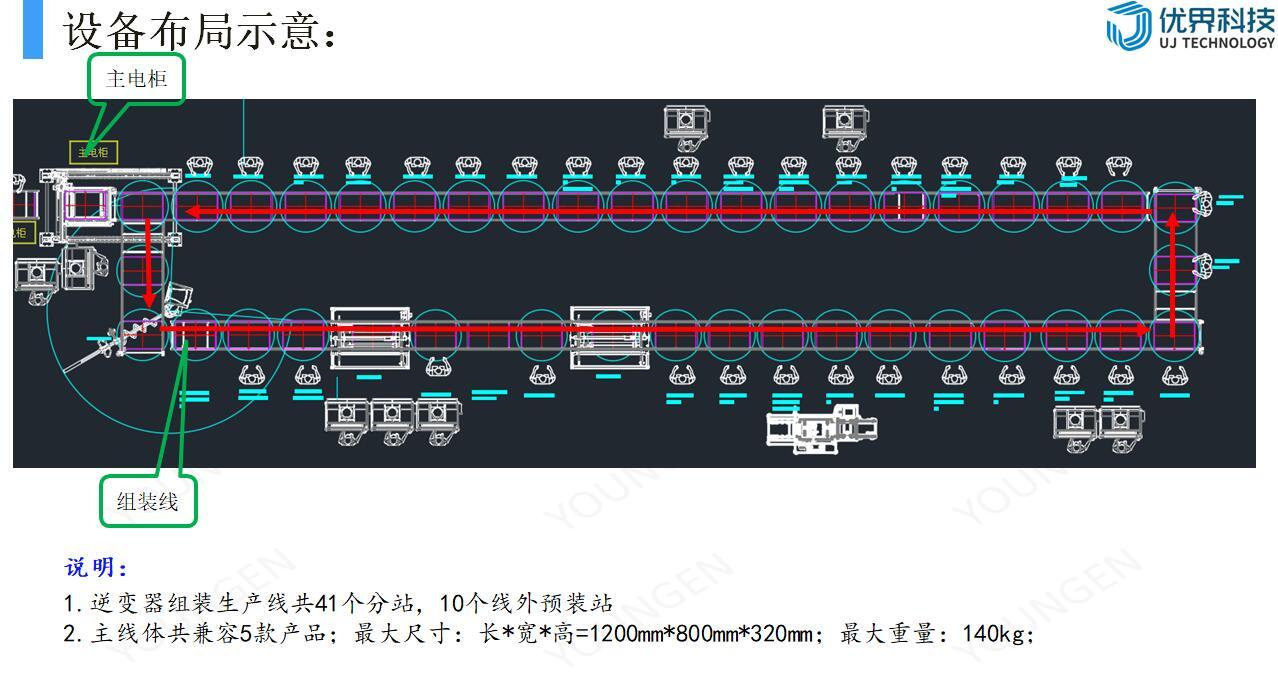

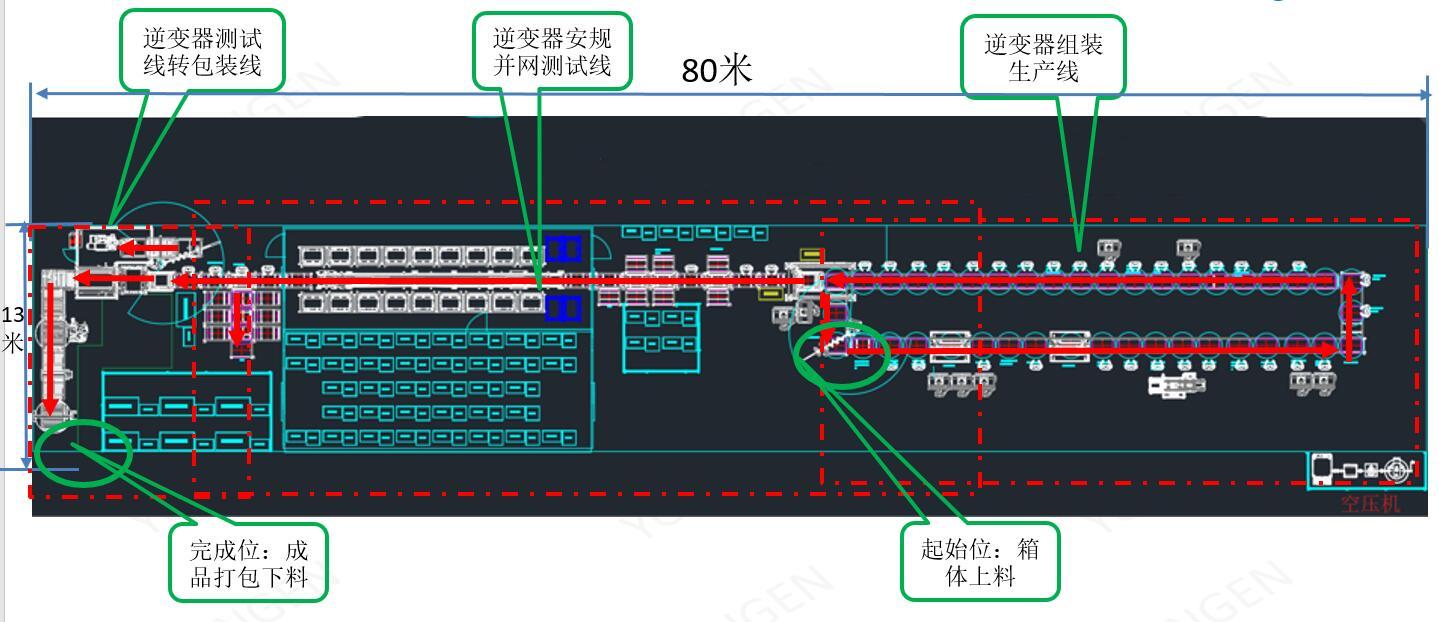

1. 1、Assembly line segment for string inverters (includes feeding mechanism, automatic assembly of heat sinks and inductors, automatic coating, automatic screw locking for power boards, case flipping, automatic line changing, upper-level computer control systems for each workstation, etc.);

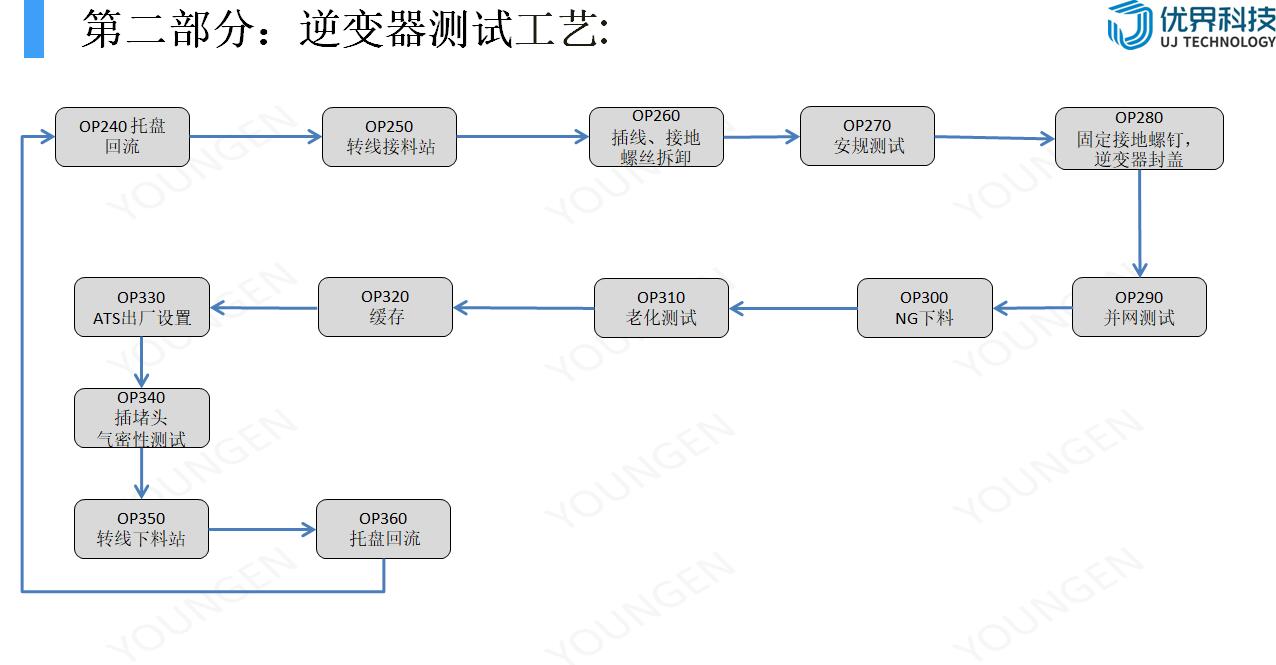

2. 2、Testing line segment for string inverters (includes automatic safety testing, voltage drop testing, small-power grid-connection automatic testing, aging testing, ATS factory testing, automatic air-tightness testing, etc.);

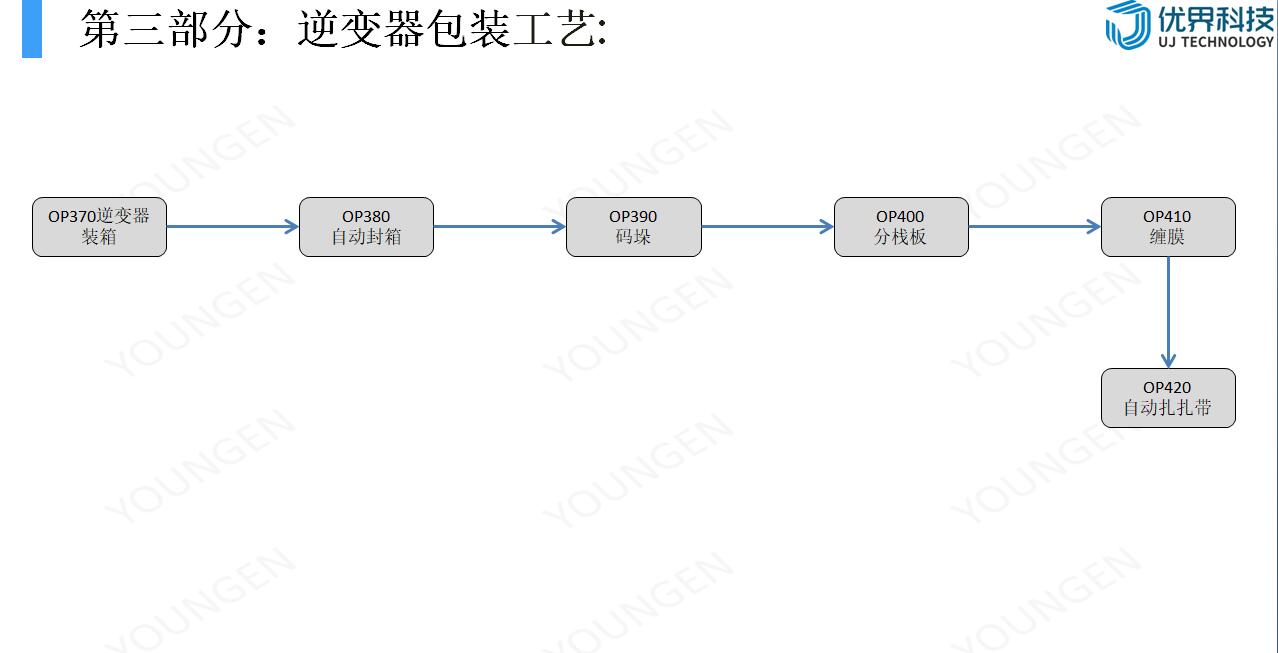

3. 3、Packaging line segment for string inverters (includes semi-automatic boxing, automatic pallet loading, automatic stacking, automatic wrapping, automatic strapping, automatic offline handling, upper-level computer control systems for each workstation, etc.);

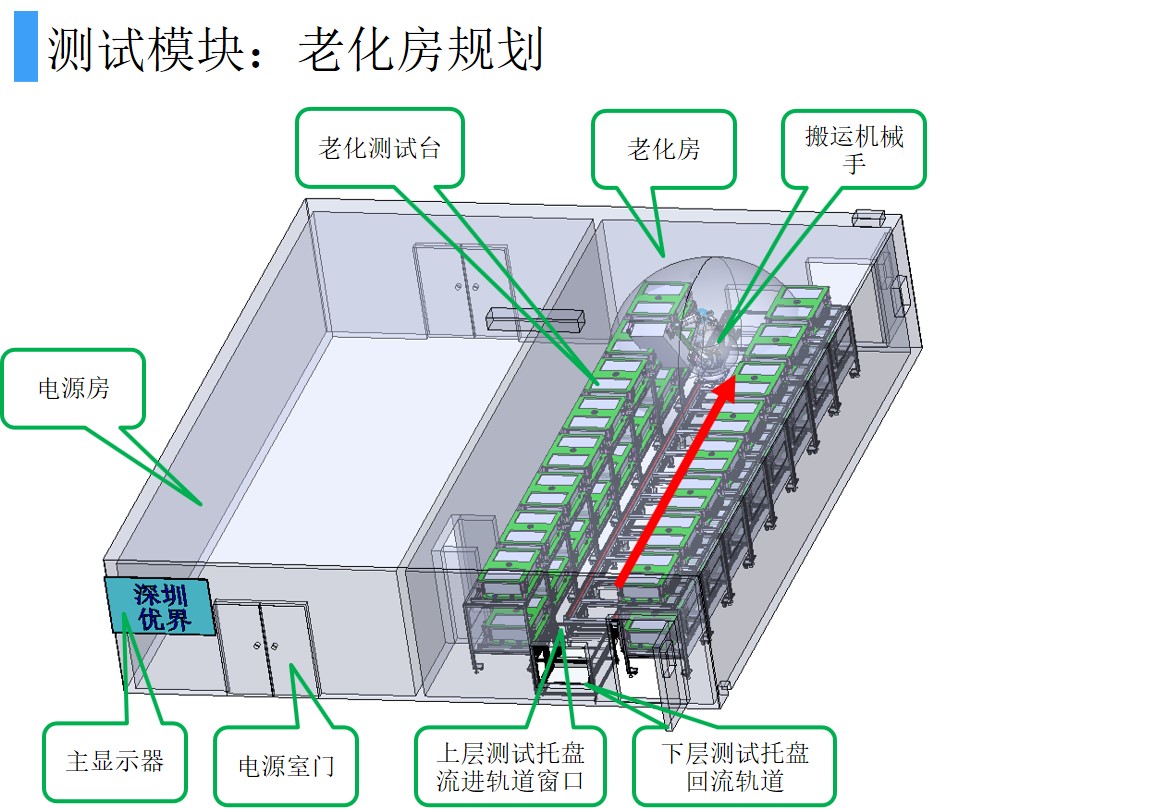

4. 4、Aging room planning: (includes site layout, power room arrangement, inflow and return tracks, aging time setting, adjustable indoor temperature, different aging modes for string or energy storage PCS, etc.);

5. 5、Comprehensive production line software management and control system (requires integration with MOM system to achieve full-process management from assembly to testing and packaging);

6. 6、Pallet return types: assembly pallets and testing pallets;

7. 7、Maximum dimensions: Length * Width * Height = 1200mm * 800mm * 320mm;

8. 8、Compatible with 5 models, customizable development according to different product models;

9. 9、140kg；Maximum weight: 140kg;

11. Customized assembly and production solutions are available for string inverters with varying power requirements, PCS bi-directional converters for energy storage, vehicle-mounted inverters, micro-inverters, and other power electronic devices. Welcome to contact us for more information!

—————————————————————————————————————————————————————————————————————————————————————

Hello, due to the confidentiality agreements signed for the detailed technical information of some commercial cases, it cannot be displayed online! If you need to obtain a customized solution, please contact us via mobile phone & WeChat: 181-2451-5629
